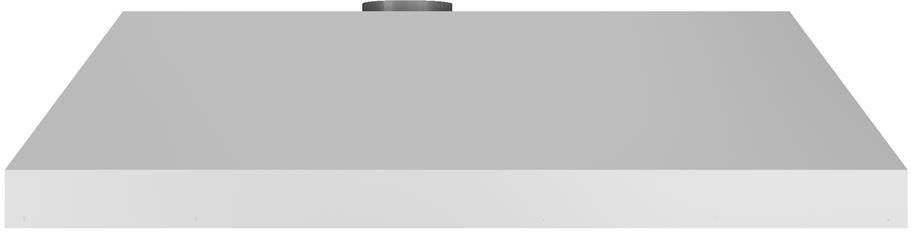

    Vent-A-Hood® 48" Stainless Steel Insert Range Hood


    Model #:

    BH146PSLD SS

    Model #: BH146PSLD SS
    709814
    Vent-A-Hood
    $99,999.00

    At a Glance

    Product Dimensions 12"h x 46.38"w x 22.5"d

    The extra size and blower capacity of the BHPSLD model can be used above professional-style cooking equipment. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface.Read More

    Call for Best Price

    Color Finish Name:Stainless Steel

    What We Offer

    Services

    View Options

    None Selected

    Get to know this product.

    Product Overview

    Product Overview
    Quiet

    Turn on a Vent-A-Hood® and you’ll hear only a whisper of air movement, because the Magic Lung® system provides the quietest ventilation available. Vent-A-Hood®s with LED lights also feature SensaSource® . SensaSource® raises the blower speed from low to high based on temperature for optimal grease control, fire safety, and even quieter operation.

    How quiet is a Vent-A-Hood®? The test results shown below were generated at a certified independent industry testing lab. All tests were measured at full speed to demonstrate the most accurate sound rating (other manufacturers may use lower speeds for testing which don't reflect accurate operating sound levels).

    Vent-A-Hood's® Magic Lung® "multi-blower technology" allows CFM to double, triple, or quadruple with very little effect on sound levels.

    Efficient

    The powerful Magic Lung® blower traps all cooking contaminants, liquefies grease vapor and removes heat-polluted air. Because the Magic Lung® blower combines sufficient air pressure and constant speed with centrifugal filtration—and because it doesn’t pull air through a filter—it is the most efficient kitchen ventilation available today.

    Easy-Cleaning

    The Magic Lung® housing snaps apart for easy cleaning in the dishwasher or with warm, soapy water. Moreover, the Magic Lung® is the only ventilation system that collects the grease in the easily cleaned housing rather than in hard-to-reach areas behind a mesh or baffle filter.

    Fire-safe

    The Magic Lung® is the only residential ventilation system on the market today that prevents fire from spreading to the rest of the home. Constant speed creates centrifugal pressure that prevents fire from entering the ductwork. As needed, SensaSource® increases blower speed to its normal level to maintain this safety feature.

    Powerful

    Magic Lung® blowers can be configured to provide the power you need for even the most demanding cooking surface. Each highly efficient Magic Lung® blower supplies 300 CFM of air movement; you can combine multiple blowers in a single Vent-A-Hood® to create the perfect ventilation for your cooking surface.

    Special Notes: LED lights. This model is not available with heat lamps.

    Useful Documents
    Specifications

    General Specs

    Width (in.)46.38
    Height (in.)12
    Duct Size (in.)6
    Depth (in.)22.5
    ColorStainless Steel
    Color Finish NameStainless Steel
    Range Hood TypeInsert
    ADA CompliantNo
    ENERGY STAR CertifiedNo
    Outdoor ApprovedYes
    Appliance Fit Width (in.)48
    Smart CompatibleNo
    Maximum CFM300
    Bulb TypeLED
    Sones Rating5.4
    Vent LocationTop
    Height Above Cooktop30
    Voltage115
    Amp2.5
    Frequency60
    Noise Level (Sones)Standard - (High)
    Ventilation TypeDucted
    WarningProposition 65 Warning for California Residents
